Faster R-CNN 논문(Faster R-CNN: Towards Real-Time ObjectDetection with Region Proposal Networks) 리뷰
이번 포스팅에서는 Faster R-CNN 논문(Faster R-CNN: Towards Real-Time Object Detection with Region Proposal Networks)을 읽고 정리해봤습니다. 기존 Fast R-CNN 모델은 여전히 Selective search 알고리즘을 통해 region proposals
herbwood.tistory.com
R-CNN의 단점
1) 2000개의 RoI 각각을 CNN 통과 (시간이 오래걸림)
2) 강제 warping (성능 손실 가능성)
3) CNN, SVM classifier, bbox regression 따로 학습
4) end-to-end 불가능
Fast R-CNN의 개선점
1) 2000개의 RoI 각각을 CNN 통과 (시간이 오래걸림)
> 이미지 전체를 한 번만 CNN 통과
> Region Proposal&RoI Projection: 원본에서 selective search로 찾은 RoI를 CNN을 통과한 feature map에 project 시킴
2) 강제 warping (성능 손실 가능성)
> RoI pooling: 지정한 크기의 그리드로 나눈 후 max pooling하여 (강제 warping 할 필요 없이) 고정된 크기의 feature map 출력
3) CNN, SVM classifier, bbox regression 따로 학습
> RoI pooling 후 fully connected layer, softmax classifier, bounding box regressor
> 따로 학습할 필요 없음
>>> 위 알고리즘 중 2번과 3번은 Faster R-CNN에서도 사용함
>>> end-to-end traing에 bottleneck 문제 아직 존재. Faster R-CNN에서 해결해보자!
Faster R-CNN
- Fast R-CNN이 end-to-end training에서 bottleneck이 있는 이유는 selective search가 CPU상에서만 돌아가는 알고리즘이고, 이로 인해 네트워크 병목현상이 일어나기 때문
- Faster R-CNN은 이를 해결하기 위해 Region Proposal Network(RPN)을 제안
RPN
- 원본 이미지에서 region proposal을 추출하는 네트워크
- summary:
> 원본 이미지를 그리드로 나눠서 각 그리드마다 9개의 anchor box를 추출함
> region proposal에 대해 class score을 매기고 bounding box coefficient를 출력

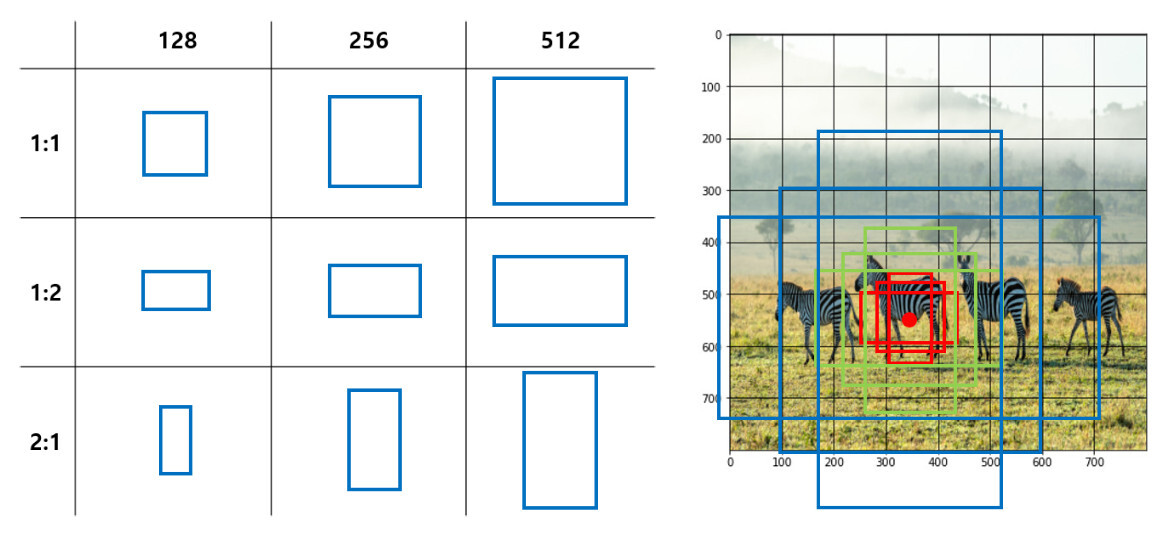

anchor box
- 세 개의 aspect ratio와 scale의 조합으로 총 9개의 anchor box 존재
- 다양한 크기로 다양한 크기의 객체를 포착할 수 있음
- 원본 이미지와 CNN을 통과한 feature map의 sub-sampling ratio에 따라서 grid를 나눔
- anchor box는 원본 이미지의 각 grid cell의 중심을 기준으로 생성
ex. 원본 이미지 600x800, sub-sampling ratio 1/16
> anchor가 생성되는 수 = 600/16 x 800/16 = 1900
> anchor box의 수 = 1900 x 9 = 17100
Steps
1. 원본 이미지를 pretrained VGG 모델에 입력하여 feature map 추출
ex. 원본 이미지 800x800, sub-sampling ratio 1/100 -> 8x8x512 feature map
2. 1에서 얻은 feature map에 대해 3x3 conv 연산 적용 (feature map 크기 유지를 위해 padding 추가)
ex. 8x8x512 feature map - 3x3 conv -> 8x8x512 feature map
3. class score를 매기기 위해 feature map에 대해 1x1 conv 연산 적용.
이 때 channel 수가 2x9(물체가 있는지 없는지 x anchor box 개수)이 되도록 함.
각 grid cell에 anchor box 9개
ex. 8x8x512 feature map - 1x1 conv -> 8x8x2x9 feature map = class scores
4. bounding box regressor를 얻기 위해 feature map에 1x1 conv 연산 적용.
channel수가 4x9(bounding box regressor x anchor box 개수)가 되도록 함.
ex. 8x8x512 feature map - 1x1 conv -> 8x8x4x9 feature map = bounding box regressors
Results
left) anchor box 종류에 따라 객체 포함 여부를 나타냄
right) anchor box 종류에 따라 bounding box regressor를 나타냄

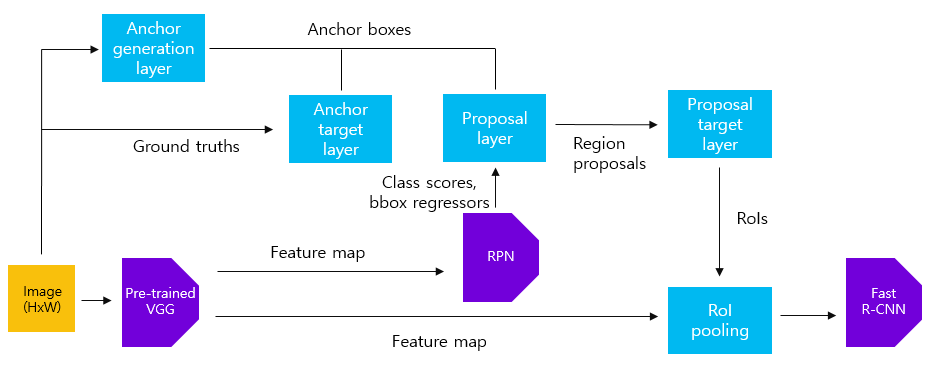

전체적인 Faster R-CNN training 과정
1. Feature extraction by pretrained VGG16
- input: 800x800x3 img, sub-sampling ratio 1/16
- output: 50x50x512 feature map
2. generate anchors by anchor generation layer
원본 이미지에 대해 anchor box를 생성하는 과정.
원본 이미지에 sub-sampling ratio를 곱한만큼의 grid cell이 생성되고, grid cell마다 9개의 anchor box가 생성됨
- input: 800x800x3 img, sub-sampling ratio 1/16
- output: 50x50x9 = 22500 anchor boxes
3. class scores and bounding box regressor by RPN
- input: 50x50x512 feature map
- output: class scores(50x50x2x9 feature map), bounding box regressors(50x50x4x9 feature map)
4. region proposal by proposal layer
RPN에서 반환한 class scores와 bounding box regressors를 사용해 region proposal을 추출.
Non-Maximum Suppression으로 부적절한 box를 제거, class score 상위 N개의 anchor box 추출.
Regression coefficients를 통해 anchor box들의 위치를 fine-tuning함.
- input: 50x50x9 = 22500 anchor boxes,
class scores(50x50x2x9 feature map), bounding box regressors(50x50x4x9 feature map)
- output: top-N ranked region proposals
5. Select anchors for training RPN by anchor target layer
anchor target layer의 목표는 RPN이 학습하는데 사용할 수 있는 anchor를 선택하는 것.
2에서 생성한 anchor box들 중 원본 이미지의 경계를 벗어나지 않는 anchor box 선택.
positive sample = 객체가 존재하는 foreground / negative sample = 객체가 없는 background
ground truth box와 가장 큰 IoU 값을 가지는 경우 OR ground truth box와의 IoU 값이 0.7 이상인 경우 positive,
0.3 이하인 경우에는 negative, 나머지의 경우는 무시함. (=positive/negative data sampling)
- input: anchor boxes, ground truth boxes
- output: positive/negative samples with target regression coefficients
6. Select anchors for training fast R-CNN by proposal target layer
proposal target layer의 목표는 proposal layer에서 나온 region proposal 중 fast R-CNN 모델을 학습시키기 위한 sample을 선택하는 것.
선택된 region proposal은 1에서 출력한 feature map에 RoI pooling을 수행.
region proposal과 ground truth box와의 IoU가 0.5 이상이면 positive, 0.1~0.5인 경우 negative.
- input: top-N ranked region proposals, ground truth boxes
- output: positive/negative samples with target regression coefficients
7. max pooling by RoI pooling
1에서 추출한 feature map과 6에서 얻은 sample로 RoI pooling 수행.
고정된 크기의 feature map이 나옴.
- input: 50x50x512 feature map
positive/negative samples with target regression coefficients
- output: 7x7x512 feature map
8. train fast R-CNN by multi-task loss
입력받은 feature map을 fc layer에 입력하여 4096 크기의 feature vector 추출.
feature vector를 classifier & bounding box regressor에 입력하여 k+1, (k+1)x4 크기의 feature vector 출력 (k = class 수)
출력된 결과와 multi task loss를 통해 fast R-CNN 모델을 학습.
- input: 7x7x512 feature map
- output: loss (RPN loss + RoI loss)
Inference 과정
inference 단계에서는 anchor/proposal target layer는 사용되지 않음.
둘은 네트워크를 학습시키기 위한 데이터셋을 구성하는데 사용되기 때문.
Proposal layer에서 추출한 region proposal로 detection 수행, NMS를 통해 최적의 bounding box만을 결과로 출력.
